Transporter Frame

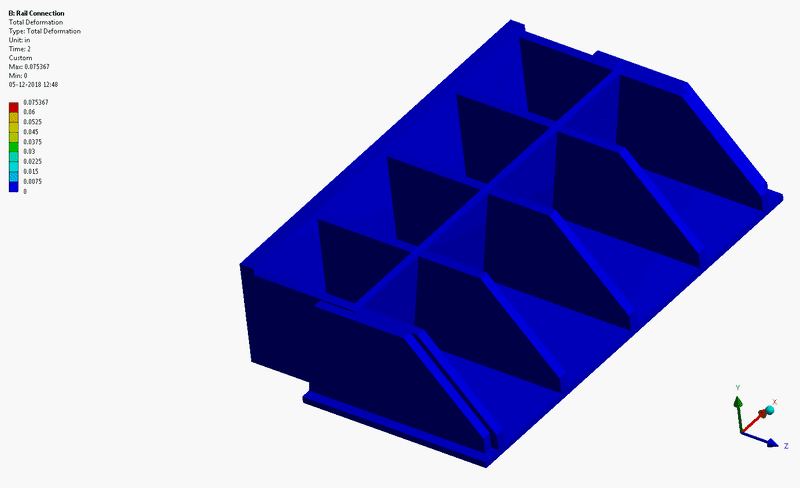

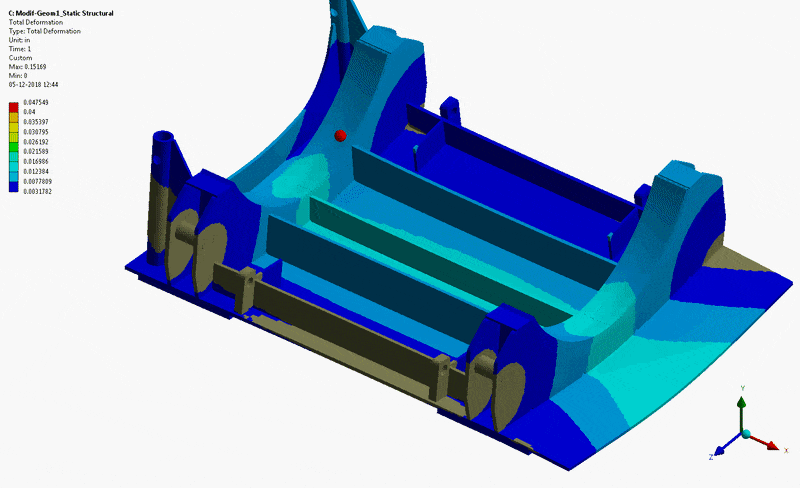

Aim- Static Analysis of Transporter Frame

Brief- It is a heavy structure frame used for transporting the packages/materials.
It is the interface between the transporter and package/material.
It is designed for different modes of transport (like Railways, Roadways, Waterways) for safe transport of the desired load.
That includes safe strapping/tightening of the package, Lifting of the Frame or Frame with the desired package.
Use of Lifting Lugs at various critical locations/orientations for precise lifting without hampering the structural integrity of the whole package.

Application area- Transporting all Structures like – Wind Blades, Heat Exchangers, Turbines etc.
